If you are engaged in quality control/guarantee, failure analysis, R&D or forensics, searching for details under the microscope can take up a lot of your time. The Leica DVM6 digital video microscope is fast, reliable and easy to use, and is suitable for all users. It combines superior optics, intuitive operation and intelligent software, making it the perfect solution to save you time. Beijing Zhongxian Hengye Instrument Co., Ltd. is a high-tech enterprise founded by Tsinghua University's Industrial Engineering Department alumni. It is a high-tech enterprise specializing in optical microscopes.
Leica DVM6 features at a glance
Manual or electric model
All system components are coded - also for manual models
The electric model is a hybrid design that supports both manual operation and fast rough positioning
Provides a zoom ratio module with a 16:1 zoom ratio range
Built-in 10 megapixel high resolution camera
Leica optics for long working distances and PlanApo corrected
Software controlled optical iris
Built-in ring light and coaxial LED lighting
Snap-in adapter for ring light comparison (polarizer, homogenizer, low angle illumination)
Backlighting for transparent samples
Tilt stand for easy one-hand operation, tilt angle range -60° to +60°
60 mm focusing drive
XY stage with stroke 70 mm x 50 mm
Autofocus offers two options: single shot or continuous autofocus for the area of ​​interest
LAS X software
First, Leica DVM6 is widely used in the automotive industry, micro-nano electronics industry, as well as criminal investigation, forensic science and other industries.
1. Automobile manufacturing

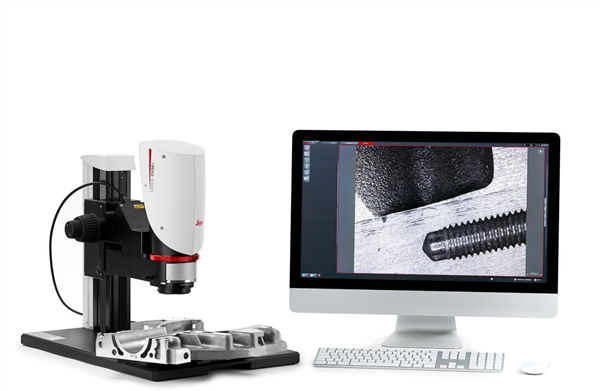

Lecia DVM6 video microscope for quality control work
For measuring automotive parts that meet delivery standards and requirements, the Leica DVM6 video microscope provides fast and reliable results, such as grain size, major alloy composition identification, and porosity, ensuring quality in a short period of time. Make a judgment.

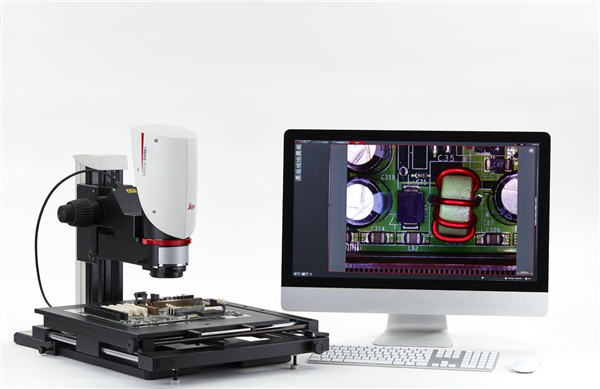

2, the electronics industry
If the production line of the electronics or microelectronics industry faces multiple production standards, the initial samples of various defects need to be identified as quickly as possible. The Leica DVM6 video microscope can help with this identification process and also has a positive impact on quality control.
3. Forensic medicine
In criminal investigation science, criminal investigators use microscopes to turn scene clues into physical evidence. The Leica DVM6 video microscope makes it easier to identify the microscope tasks of gunshots, tool marks, documents, hair and fibers, glass, and paint, as well as expert identification of judicial drugs.
Adhering to the "self-improvement, ethics and morality" Tsinghua school motto, the company is committed to bringing the world's most cutting-edge technology and the most advanced instruments and equipment to China, providing scientific, rigorous concepts to provide users with advanced, professional and cost-effective scientific instruments. Program. Xianhengye
Second, Leica DVM6 is characterized by ease of use, only one step from macro to micro, which can greatly save time and improve efficiency.
With the DVM6 digital video microscope, you can get the smallest detail from a big picture in a flash. Even if you need to switch the objective, you can work seamlessly because the sample is always in focus and no pre-adjustment is required. With the tilt function, you can view samples from different angles (up to ±60°).
Why can the Leica DVM6 digital video microscope save you time?
16:1 zoom ratio range for quick replacement of magnification
2350x magnification shows details down to 0.4 microns on the same microscope
Horizontal field of view from 35 mm to 0.18 mm in the same focal plane
1. Why can I find more details using the Leica DVM6 digital video microscope?
10 million pixel high resolution camera
Fast display of live images at frame rates above 30 frames per second
See more details with PlanApo-corrected Leica optics
Ideal for illuminating samples in larger fields of view
The lighting and contrast options can be combined in a variety of ways to highlight sample characteristics with the best results.
Outstanding image quality! The Leica DVM6 digital video microscope uses world-class optical components from the Leica brand. Choose from a variety of built-in LED lighting options to showcase unprecedented detail. A high-resolution camera captures images with natural colors.
2. The results are impressive: with intelligent automation technology?
DVM6 speeds up your day-to-day work, especially for repetitive tasks. The settings are automatically stored in the background. The digital microscope's encoding capabilities make data more accurate and reliable, and help avoid errors. LAS X software makes it easy to navigate and provide measurement tools to meet your every need. It is believed that each user can output the same quality data.
3. Why can you easily reproduce the results?
Zoom ratio range for continuous encoding and calibration
Sensor control for all instrument components
Each image is saved along with all settings, such as lighting, position, magnification
Create 2D and 3D measurement reports with a single click
4, intuitive and easy to use software: your automatic navigator

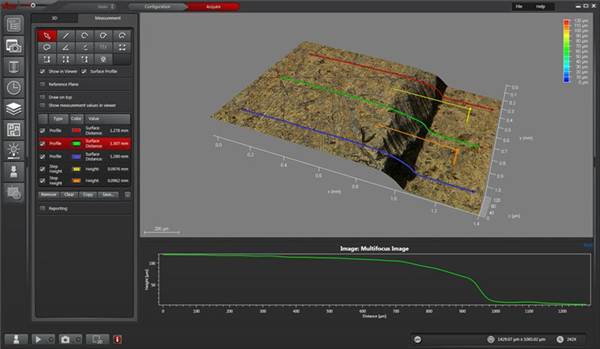

LAS X software is a key factor in making DVM6 fast, reliable and easy to use. Using a pre-defined ingestion mode, you can create a perfect image, whether it's a single shot or a large stitched image on XYZ. Efficient analysis is an inherent advantage of this microscope: you can measure in 2D and 3D modes and annotate images. Finally, you can export the results to a custom Excel report template with a single click.
How LAS X can help you speed up your workflow
Image preview makes it easy to improve image quality - you can choose from six different suggestions. Image customization with preferred settings with just one click. Real-time images are displayed in high dynamic range (HDR), giving you an unobstructed view of every detail.
3D images can be expanded throughout the XY scan area with virtually no size limitations. LAS X is a native 64-bit application that runs under Windows 7 on a standard PC
Third, how to find the Leica DVM6 configuration suitable for you, please contact Leica Industrial Microscope best agent: Beijing Zhongxian Hengye Instrument Co., Ltd. -010-82967128 13911246050http://
The Leica DVM6 is available in three different configurations to help you find the solution that best meets your application and budget needs.
Choose among the following three models?
DVM6 C: Do you have high-resolution images and application diversity requirements? If you are uncompromisingly pursuing image quality, the DVM6 C is the ideal choice.
DVM6 S: Are you looking for multifocal images and 3D analysis? With the DVM6 S, you get a comfortable motorized focus experience during imaging and like this autofocus feature.
DVM6 A: Do you want to scan a larger area at high resolution? If you are looking for the ultimate in versatility, we recommend using a DVM6 A microscope. Large images can be taken on XYZ with a single click.
Leica DVM6 M -- Digital Zoom Microscope
If your sample is too large or bulky compared to the standard Leica DVM6 configuration, the modular Leica DVM6 M – a very flexible ultra depth of field microscope – is perfect for you. Through a dedicated interface interface, the DVM6 M can be docked with the optional brackets of the Leica range of mirrors, allowing you to inspect larger or higher samples.
1. Leica DVM6 M - for large surfaces of automotive parts
The DVM6 M digital microscope can be configured with:
Low-level flat field apochromat objective with a field of view of 43.75 mm
M series stereo microscope special 420 mm height coarse fine focusing stereo
Universal XL large flat base
2, Leica DVM6 M - fast online quality control on electronic production line
Low-level flat field apochromat objective with a field of view of 43.75 mm
M series stereo microscope special 420 mm height coarse fine focusing stereo
Universal XL large flat base
Fixable fixed damping sliding platform
3. Quality standards for pharmaceutical device industry
Medium-level field apochromatic objective lens with a field of view of 12.55 mm
M series stereo microscope dedicated 620 mm height electric focusing stereo
TL5000 ergonomic transmission light base
